The LS based GM small-block engine is the primary V-8 used in General Motors' line of rear-wheel-drive cars and trucks. Introduced in January 1995, it is a "clean sheet" design with only rod bearings and bore spacing in common with the longstanding Chevrolet small block V8 that preceded it as the basis for GM small-block V8s. The LS' basic layout owes a good deal to Ed Cole's original small-block design of 1954-55, though it also uses cues from Buick, Oldsmobile, and Pontiac V8s. The basic LS variations use cast iron blocks, while performance editions are all aluminium with cast iron cylinder liners.
The LS small-block has been manufactured in three Generations - III, IV, and V - with preceding Generations I and II of modular GM small-block engines having been based on the Chevrolet small-block V8 originally designed in 1955. GM recycled the "LT" designation previously used on Chevrolet small-block V8-derived "GM" engines beginning with the LS Generation V "LT1" in 2014.
Several versions of the LS were used in the Chevrolet Corvette, beginning with the LS1 in 1997 through the LS9 and others in 2013. Variants of the LT version of the GM small-block have been used since.
Maps, Directions, and Place Reviews
Generation III (1996-2007)
The GM Generation I and Generation II (LT) engine families both derived from the longstanding Chevrolet small block V8. The Generation III small-block V-8 was a "clean sheet" design, which replaced the Gen I and Gen II engine families in 2003 and 1996 respectively. Like the previous two generations, the Buick and Oldsmobile small blocks, the gen III/IV can be found in many different brands. The engine blocks were cast in aluminium for car applications, and iron for most truck applications (notable exceptions include the Chevrolet TrailBlazer SS, Chevrolet SSR and a limited run of Chevrolet/GMC Extended Cab Standard Box Z71 Trucks). The architecture of the LS series makes for an extremely strong engine block with the aluminium engines being nearly as strong as the iron generation I and II engines. The LS engine also used coil-near-plug style ignition to replace the distributor setup of all previous small-block based engines. The traditional five-bolt pentagonal cylinder head pattern was replaced with a square four-bolt design ( much like the 64-90 Oldsmobile V-8 ), and the pistons are of the flat-topped variety (in the LS1, LS2, LS3, LS6, LS7, LQ9 and L33), while all other variants, including the new LS9 and LQ4 truck engine received a dished version of the GM hypereutectic piston. The cylinder firing order was changed to 1-8-7-2-6-5-4-3, so that the LS series now corresponds to the firing pattern of other modern V8 engines (for example the Ford Modular V8).
3.898 in bore blocks (1996-2005)
The first of the Generation IIIs, the LS1 was the progenitor of the new architecture design that would transform the entire V8 line and influence the last of the Big Blocks.
5.7 L
The Generation III 5.7 L shares little other than similar displacement, external dimensions, and rod bearings, with its predecessor (LT1). It is an all-aluminium 5,665 cc (5.665 L; 345.7 cu in) pushrod engine with a bore of 3.898 in (99.0 mm) and a stroke of 3.62 in (92 mm).
LS1
When introduced in the 1997 Corvette the LS1 was rated at 345 hp (257 kW) at 5,600 rpm and 350 lbf·ft (470 N·m) at 4,400 rpm. After improvements to the intake and exhaust manifolds in 2001 the rating improved to 350 hp (260 kW) and 365 lbf·ft (495 N·m). The LS1 was used in the Corvette from 97-04. It was also used in 98-02 GM F-Body (Camaro & Trans Am) cars with a rating of 305-325+ HP, which was rumored to be conservative. The extra horsepower was claimed to come from the intake ram-air effect available in the SS and WS6 models. In Australia, continuous modifications were made to the LS1 engine throughout its lifetime, reaching 1000hp/1572ft-lb in the HSV's YII series, and a Callaway modified version named "C4B" was fitted to HSV GTS models producing 400hp and 405ft-lb .
Applications:
- 1997-2004 Chevrolet Corvette
- 1998-2002 Pontiac Firebird Formula, Trans Am
- 1998-2002 Chevrolet Camaro
- 1999-2004 Holden Special Vehicles Clubsport (VT, VX, Y Series)
- 1999-2004 Holden Special Vehicles Clubsport R8 (VT, VX, Y Series)
- 1999-2004 Holden Special Vehicles Grange (VT, VX, Y Series)
- 1999-2004 Holden Special Vehicles GTS (VT, VX, Y Series)
- 1999-2004 Holden Special Vehicles Maloo (VT, VX, Y Series)
- 1999-2004 Holden Special Vehicles Senator Signature (VT, VX, Y Series)
- 2000-2005 Holden Ute
- 1999-2005 Holden Commodore (VT, VX, VY, VZ)
- 1999-2005 Holden Statesman (WH, WK, WL)
- 1999-2005 Holden Caprice (WH, WK, WL)
- 2000-2002 Holden Special Vehicles Senator 300 (VX)
- 2000-2002 Holden Special Vehicles Coupé GTO (VX)
- 2000-2002 Holden Special Vehicles Coupé GTS (VX)
- 2000-2002 Holden Special Vehicles SV300 (VX)
- 2000-2004 Holden Special Vehicles Maloo R8 (VX, Y Series)
- 2001 Opel Omega (prototype)
- 2001-2005 Holden Monaro CV8
- 2005 Holden Monaro CV8 Z
- 2001-2005 CSV Mondo
- 2001-present Mosler MT900
- 2003-2004 Holden Special Vehicles Clubsport SE (Y Series)
- 2003-2004 Holden Special Vehicles Coupé LE (Y Series)
- 2003-2004 Holden Special Vehicles Coupé4 AWD (Y Series)
- 2003-2004 Holden Special Vehicles Avalanche XUV (Y Series)
- 2003-2004 Holden Special Vehicles Avalanche XUV AWD (Y Series)
- 2004 Pontiac GTO
- 2006-present Elfin MS8 Streamliner
- 2006-present Elfin MS8 Clubman
LS6
The LS6 is a higher-output version of GM's LS1 engine and retains the same capacity. The initial 2001 LS6 produced 385 bhp (287 kW) and 385 lbf·ft (522 N·m), but the engine was modified for 2002 through 2004 to produce 405 bhp (302 kW) and 400 lbf·ft (540 N·m) of torque. The LS6 was originally only used in the high-performance C5 Corvette Z06 model, with the Cadillac CTS V-Series getting the 400 bhp (300 kW) engine later. The V-Series used the LS6 for two years before being replaced by the LS2 in 2006. For 2006, the Z06 replaced the LS6 with the new LS7. The LS6 shares its basic block architecture with the GM LS1 engine, but other changes were made to the design such as windows cast into the block between cylinders, improved main web strength and bay to bay breathing, an intake manifold and MAF-sensor with higher flow, a camshaft with higher lift and more duration, a higher compression ratio of 10.5:1, sodium filled valves, and a revised oiling system better suited to high lateral acceleration. LS6 intake manifolds were also used on all 2001+ LS1/6 engines. The casting number, located on the top rear edge of the block, is 12561168. Applications:
- 2001-2004 Corvette Z06
- 2004-2005 Cadillac CTS V-Series
- 2007 SSC Ultimate Aero TT
3.78 in bore blocks (1999-2007)
The 4.8 L and the 5.3 L are smaller truck versions of the LS1 and were designed to replace the 305 and the 350 in trucks. Both the 4.8 L and the 5.3 L share the same engine block, heads (upper end) and as they share architecture, some parts interchange freely between these engines and other variants in the LS family.
4.8L LR4
The Vortec 4800 LR4 (VIN code "V") is a Generation III small block V8 truck engine. Displacement is 4.8 L (293 cu in) with a 96.01 mm (3.78 inch) bore and 83 mm (3.27 inch) stroke. It is the smallest of the Generation III Vortec truck engines and was the replacement for the 5.0 L 5000 L30. The LR4 engines in 1999 produced 255 hp (190 kW) while the 2000 and above models made 270-285 hp (201-213 kW) and all have a torque rating between 285-295 lb·ft (386-400 N·m), depending on the model year and application. The 2005-2006 models made 285 hp (213 kW) and 295 lb·ft (400 N·m), LR4s are manufactured at St. Catharines, Ontario and Romulus, Michigan. It uses flat top pistons.
LR4 applications:
- 2003-2006 Chevrolet Express/GMC Savana
- 1999-2006 Chevrolet Silverado/GMC Sierra 1500
- 2000-2006 Chevrolet Tahoe/GMC Yukon
5.3 L
The Vortec 5300, or LM7/L59/LM4, is a V8 truck engine. It is a longer-stroked (by 9 mm (0.35 in)) version of the Vortec 4800 and replaced the L31. L59 denoted a flexible fuel version of the standard fuel LM7 engine. Displacement is 5.3 L (5,328 cc (325.1 cu in)) from 3.78-inch (96 mm) bore and 3.622-inch (92.0 mm) stroke. Vortec 5300s are built in St. Catharines, Ontario and Romulus, Michigan. Another engine variant, the L33, shares the same displacement, but has an aluminum block with cast in cylinder liners, much like the LS1.
LM7
The Vortec 5300 LM7 (VIN code 8th digit "T") was introduced in 1999, and can be considered the "garden variety" version of the Generation III V8s.
The 1999 LM7 engine produced 270 hp (201 kW) and 315 lb·ft of torque (427 N·m).
The 2000-2003 engines made 285 hp (213 kW) and 325 lb·ft (441 N·m).
The 2004-2007 engines made 295 hp and 335 lb·ft of torque, it has a cast iron block and aluminum heads.
The stock cam specs @ .050 duration are: 190/191 duration, .466/.457 lift, 114 LSA, 112/116 Timing
LM7 applications:
- 2002-2005 Cadillac Escalade 2WD
- 2002-2006 Chevrolet Avalanche
- 2003-2007 Chevrolet Express/GMC Savana
- 1999-2007 Chevrolet Silverado 1500
- 1999-2007 GMC Sierra 1500
- 2000-2006 Chevrolet Suburban/GMC Yukon XL 1500
- 2000-2006 Chevrolet Tahoe/GMC Yukon
L59
The Vortec 5300 L59 (VIN code "Z") is a flexible fuel version of the LM7. The 2002-2003 made 285 hp (213 kW) and 320 lb·ft (434 N·m), while the 2004-2007 L59s made 295 hp (220 kW) and 335 lb·ft (454 N·m).
L59 applications:
- 2002-2007 Chevrolet Avalanche Z71 Package
- 2002-2006 Chevrolet Tahoe/GMC Yukon
- 2002-2006 Chevrolet Suburban/GMC Yukon XL 1500
- 2002-2007 GMC Sierra 1500 / Chevrolet Silverado 1500
LM4
The Vortec 5300 LM4 (VIN code "P") is an aluminum block version of the LM7, and had a short production life. The LM4s made 290 hp (216 kW) and 325 lb·ft (441 N·m), It should not be confused with the L33 described below.
LM4 applications:
- 2003-2005 Chevrolet TrailBlazer EXT
- 2003-2004 Isuzu Ascender
- 2003-2004 GMC Envoy XL
- 2003-2004 Chevrolet SSR
- 2004 Buick Rainier
L33
The Vortec 5300 L33 (VIN code "B") is an aluminum block version of the LM7, and was referred to as the Vortec 5300 HO in marketing materials. However it should be noted that the L33 uses a flat top piston from the 4.8L instead of the standard dish piston found in the LM7. It also uses 799 cylinder heads, which are identical to the 243 casting found on the LS6 and LS2 with the exception to the Corvette spec valve springs, and hollow stem exhaust valves on the 2002-2004 LS6. This combination increased the compression from 9.5:1 to 10.0:1. The L33 also had a specific camshaft not shared with any other engine, with lobe lift of 7.2 mm, 193 degrees of intake and exhaust duration, and a 116 degree lobe separation angle. As a result, power increased by 15 hp (11 kW), to 310 hp (230 kW) and 335 lb·ft (441 N·m). It was only available on extended cab 4WD pickup trucks. Only 25% of trucks made in 2005 had the L33 engine.
L33 applications:
- 2005-2007 Chevrolet Silverado 1500 4WD
- 2005-2007 GMC Sierra 1500 4WD
4.00 in bore blocks (1999-2007)
The 6.0 L is a larger truck version of the LS motor, with the exception that the blocks were cast of iron, and was designed to bridge the gap between the new small blocks and big blocks in truck applications. There were two version of this engine: the LQ4 and the LQ9, the latter being more performance oriented. Although the block of the 6.0L looks similar to the LS1, they are iron instead of aluminum.
6.0 L
The Vortec 6000 is a V8 truck engine. Displacement is 5.97 L (364 cu in) from 101.6 mm (4.00") bore and 92 mm (3.622") stroke. It is an iron/aluminum (1999 & 2000 model year engines had cast iron heads) design and produces 300 horsepower (220 kW) to 345 horsepower (257 kW) and 360 lbf·ft (490 N·m) to 380 lbf·ft (520 N·m). The current 2017 year model in the 2500 HD trucks(L96), Sierra and Silverado have Horsepower: 360 hp @ 5,400 rpm and Torque: 380 lb-ft @ 4,200 rpm. The metric to U.S. engine volume calculation is 5.97/.0164 to show 364 CID.
LQ4
The Vortec 6000 LQ4, is a V8 truck engine. Displacement is 5.97 L (364 cu in) from a 4.0-inch (101.6 mm) bore and 3.622-inch (92.0 mm) stroke . It is an iron/aluminum (1999 & 2000 model year engines had cast iron heads) design and produces 300 hp (224 kW) to 325 hp and 360 lb·ft (488 N·m) to 370 lb·ft (502 N·m). LQ4s are built in Romulus, Michigan and Silao, Mexico.
(VIN U) Applications:
- Chevrolet Express/GMC Savana
- Chevrolet Silverado 2500 Pickup, 3500 Pickup, Crew Cab, and Chassis Cab/GMC Sierra 2500 HD Pickup and Crew Cab, C3, Denali, and 3500 Pickup and Chassis Cab, 1500HD Crew Cab
- Chevrolet Suburban/GMC Yukon XL Denali
- Hummer H2 SUT
- GMC Yukon Denali
LQ9
The Vortec HO 6000 or VortecMAX is a special high-output version of the Vortec 6000 V8 truck engine originally designed for Cadillac. This engine was introduced in other truck lines as VortecMAX for 2006. It features high-compression (10:1) flat-top pistons for an extra 10 hp (7 kW) and 10 lb·ft (14 N·m), bringing output to 345 hp (257 kW) and 380 lb·ft (515 N·m). LQ9s are built only in Romulus, Michigan.
LQ9 (VIN N) Applications:
- 2002-2006 Cadillac Escalade AWD
- 2006 Cadillac Escalade 2WD
- 2002-2006 Cadillac Escalade EXT
- 2003-2006 Cadillac Escalade ESV
- 2003-2007 Chevrolet Silverado SS
- 2004-2006 Chevrolet Silverado and GMC Sierra Vortec HO Edition, Silverado/Sierra Performance Edition
- 2005-2006 GMC Sierra Denali pickup and Yukon Denali
- 2007 Classic Chevrolet Silverado and GMC Sierra VortecMAX & Silverado/Sierra Performance Edition

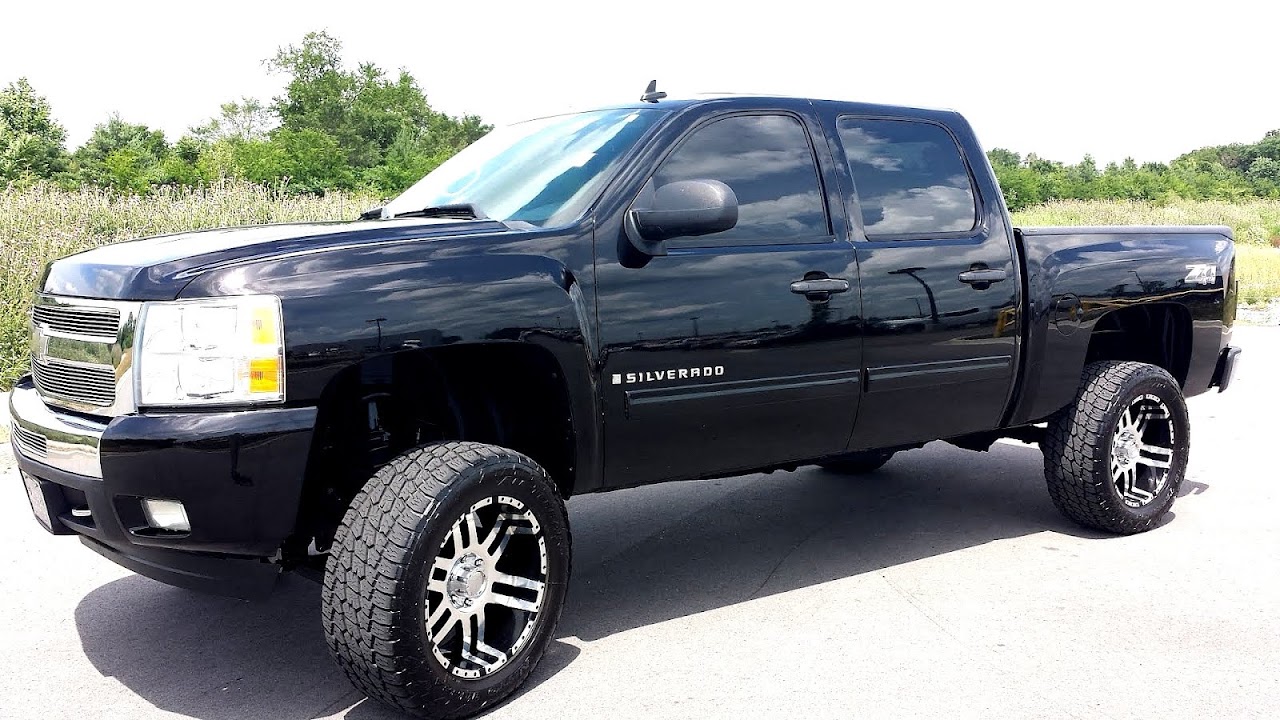

Lifted 2009 Chevy Silverado Video
Generation IV (2005-present)
In 2005, the Generation III was superseded by the Generation IV. This category of engines has provisions for high-displacement ranges up to 7,011 cc (7.011 L; 427.8 cu in) and power output to 638 bhp (476 kW). Based on the Generation III design, Generation IV was designed with displacement on demand in mind, a technology that allows every other cylinder in the firing order to be deactivated. It can also accommodate variable valve timing.
A 3-valve per cylinder design was originally slated for the LS7, which would have been a first for a GM pushrod engine; but the idea was shelved owing to design complexities and when the same two-valve configuration as the other Generation III and IV engines proved to be sufficient to meet the goals for the LS7.
4.00 in bore blocks (2005-present)
This family of blocks were the first of the generation IV small block with the LS2 being the progenitor of this family and generation. This family of blocks has seen a wide range of applications from performance vehicles to truck usage.
6.0 L
The Generation IV 6000 is a V8 engine that displaces 5,967 cc (364.1 cu in) from 101.6 mm (4.000 in) bore and 92 mm (3.622 in) stroke. It features either a cast iron or aluminum engine block with cast aluminum heads. Certain versions feature variable cam phasing, Active Fuel Management, and Flex-fuel capability.
LS2
The LS2 was introduced as the Corvette's new base engine for the 2005 model year. It also appeared as the standard powerplant for the 2005-2006 GTO. It produces 400 bhp (300 kW) at 6000 rpm and 400 lb·ft (542 N·m) at 4400 rpm from a slightly larger displacement of 5,967 cc (5.967 L; 364.1 cu in). It is similar to the high-performance LS6, but with improved torque throughout the rpm range. The LS2 uses the "243" casting heads used on the LS6 (although without the sodium filled valves), a smaller camshaft, and an additional 18 cubic inches. The compression of the LS2 was also raised to 10.9:1 compared to the LS1s' 10.25:1 and the LS6s' 10.5:1. The LS2 in the E-series HSVs are modified in Australia to produce 412 bhp (307 kW) and 412 lbft . The LS2 in the Chevrolet Trailblazer SS and the Saab 9-7X Aero are rated at 395 bhp (295 kW) (2006-2007) or 390 bhp (290 kW) (2008-2009) and 400 lb·ft (542 N·m) of torque due to a different (sometimes referred to as a "truck") intake manifold that produces more torque at lower RPMs.
The LS2 is also used as the basis of the NASCAR Specification Engine that is used as an optional engine in NASCAR's Camping World Series East and West divisions starting in 2006, and starting in 2010 may also be used on tracks shorter than two kilometers (1.25 miles) in the Camping World Truck Series.
A version of NASCAR V8 cylinder block cast in Compacted Graphite Iron by Grainger & Worrall won the UK's Casting of the Year Award 2010.
Applications:
- 2005-2007 Chevrolet Corvette
- 2005-2006 Chevrolet SSR
- 2006-2009 Chevrolet TrailBlazer SS
- 2006-2007 Cadillac CTS V-Series
- 2005-2006 Holden Monaro family:
- 2005-2006 Pontiac GTO
- 2005-2006 Vauxhall Monaro VXR
- 2005-2006 HSV Coupé GTO
- 2005-2006 HSV SV6000
- 2005-2008 HSV Clubsport R8, Maloo R8, Senator Signature and GTS
- 2005-2008 HSV Grange
- 2008-2009 Saab 9-7X Aero
L76
The L76 is derived from the LS2. And like the LS2 it features an aluminum engine block. However, the L76 does feature Active fuel management (AFM). While the displacement on demand technology was disabled on Holdens, this feature is enabled on the 2008 Pontiac G8 GT and subsequently refitted in the 2009 model Holdens with AFM enabled, but only on models fitted with the 6L80 Automatic Transmission. The engine also meets Euro III emissions requirements. Output is 348 bhp (260 kW) at 5600 rpm and 376 lb·ft (510 N·m) at 4400 rpm for the Holden variant, and 361 bhp (269 kW) and 385 lb·ft (522 N·m) for the G8 GT. The Vortec 6000 or new VortecMax version is based on the Holden L76 engine, and features variable cam phasing, along with Active Fuel Management. It can be considered the replacement for the Generation III LQ9 engine. It produces 367 hp (274 kW) at 5400 rpm and 375 lb·ft (508 N·m) at 4400 rpm. Production of the Vortec 6000 started in late 2006, and is only available with the new body style Silverado and Sierra. The final year for the option of the VortecMax engine was 2009 in the Silverado and Sierra. vin code (Y)
Applications:
- 2006 Holden VZ Commodore - Those built from February 2006 until July 2006 until the release of the VE series.
- 2006 Holden WL Statesman/Caprice - Those built from February 2006 until September 2006 until the release of the WM series.
- 2008-2009 Pontiac G8 GT
- 2008-2010 Holden VE Commodore (automatic only)
- 2008-2010 Holden VE Ute (automatic only)
- 2008-2010 Holden WM Statesman/Caprice
- 2007-2009 Chevrolet Suburban
- 2007-2009 Chevrolet Avalanche
- 2007-2009 Chevrolet Silverado
- 2007-2009 GMC Sierra
- 2007-2009 GMC Yukon XL
L98
The L98 is a slightly modified version of the L76. Since Holden did not use the displacement on demand technology of the L76, some redundant hardware was removed to form the L98. Power increased to 362 bhp (270 kW) at 5700 rpm and 391 lb·ft (530 N·m) at 4400 rpm.
Applications:
- 2006-2007 Holden VZ Ute
- 2006-2010 Holden VE Commodore (manual only from 2008-2010)
- 2006-2010 Holden VE Ute (manual only from 2008-2010)
- 2006-2008 Holden WM Statesman/Caprice
L77
L77 engines were released in the Holden Commodore Series II VE range in both manual and automatic transmissions, along with the Chevrolet Caprice police car. The L77 differs from the L76 with its inclusion of Flex-fuel capability, allowing it to run on E85 ethanol. The L77 is rated at 362 hp (270 kW) and 391lbft (530Nm) of torque in the manual Commodore SS and SS-V, in automatic Commodores it is rated at 348 hp (260 kW) and 382lbft (517Nm) of torque.
Applications:
- 2010-2013 Holden VE II Commodore
- 2013-2015 Holden VF Commodore
- 2010-2013 Holden VE II Ute
- 2013-2015 Holden VF Ute
- 2010-2013 Holden WM Caprice
- 2013-2015 Holden WN Caprice
- 2011-2017 Chevrolet Caprice PPV
LY6
The LY6 is a Generation IV small block V8 truck engine with a cast iron block. It shares the same bore and stroke as its LQ4 predecessor. Like other Gen IV engines, it features variable valve timing and displacement on demand. It generated 361 horsepower at 5,600 rpm and 385 lb-ft of torque at 4,400 rpm using "regular" gas, or ~87 octane. Redline is 6,000 rpm and compression ratio is 9.6:1. This engine uses L92 / LS3 style rectangle port cylinder heads, though without the sodium filled exhaust valves of the LS3.
Applications:
- 2007-present Chevrolet Silverado HD
- 2007-present GMC Sierra HD
- 2007-2013 Chevrolet Suburban 3/4 ton
- 2007-2013 GMC Yukon XL 3/4 ton
LFA
The LFA is a Generation IV small block V8 truck engine. The LFA variant is used in the GM's "two mode" hybrid GMT900 trucks and SUVs, and is an all-aluminum design. It has a 10.8:1 compression ratio and produces 332 hp (248 kW) at 5100 rpm and 367 lb·ft (498 N·m) at 4100 rpm. Engine VIN code of 5.
In 2008 this engine was selected by Wards as one of the 10 best engines in any regular production vehicle.
Applications:
- 2008-2009 Chevrolet Tahoe Hybrid
- 2008-2009 GMC Yukon Hybrid
- 2008-2009 Cadillac Escalade Hybrid
- 2008-2009 Chevrolet Silverado Hybrid
- 2008-2009 GMC Sierra Hybrid
LZ1
The LZ1 is almost entirely based on its predecessor, the LFA, but with some revisions, such as including up-integrated electronic throttle control, long-life spark plugs, GM's Oil Life System, Active Fuel Management and variable valve timing. It has the same compression ratio, power and torque ratings as its predecessor, the LFA.
Applications:
- 2010-2013 Chevrolet Tahoe Hybrid
- 2010-2013 GMC Yukon Hybrid
- 2010-2013 Cadillac Escalade Hybrid
- 2010-2013 Chevrolet Silverado Hybrid
- 2010-2013 GMC Sierra Hybrid
3.78 in bore blocks (2005-present)
This family of blocks is just an updated version of its Generation III predecessor with Generation IV updates and capabilities. Applications of this family were mainly for trucks but did see some mild usage (with some modifications) in front-wheel-drive cars.
4.8 L
LY2
The Vortec 4800 LY2 (VIN code "C") is a Generation IV small block V8 truck engine. Like its LR4 predecessor, it gets its displacement from a 96.01 mm (3.780 in) bore and 83 mm (3.3 in) stroke. The smallest member of the Generation IV engine family, it is unique in that it is the only member of that family that is used in trucks that does not feature variable valve timing.It has a cast iron block. Power output is 260-295 hp (194-220 kW) and torque is 295-305 lb·ft (400-414 N·m).
LY2 applications:
- 2008-2009 Chevrolet Express/GMC Savana
- 2007-2009 Chevrolet Silverado
- 2007-2009 Chevrolet Tahoe
- 2007-2009 GMC Sierra
- 2007-2009 GMC Yukon
L20
The Vortec 4800 L20 makes more power and features variable valve timing. The system adjusts both intake and exhaust timing, but does not come with Active Fuel Management. The L20 has a cast iron block and power output is 260-302 hp (194-225 kW) while torque is 295-305 lb·ft (400-414 N·m). The Vortec 4800 base engines were dropped from the Chevrolet Tahoe and GMC Yukon in favor of the 5300 with Active Fuel Management.
L20 applications:
- 2010-present Chevrolet Express/GMC Savana
- 2010-2013 Chevrolet Silverado
- 2010-2013 GMC Sierra
5.3 L
The Generation IV 5.3L engines share all the improvements and refinements found in other Generation IV engines. 8 versions of the Gen IV 5.3L engine were produced: 3 iron blocks (LY5, LMG, and LMF) and 5 aluminum blocks (LH6, LH8, LH9, LC9, and LS4). All versions featured Active Fuel Management except for the LH8, LH9 and LMF.
LMF
Introduced in 2010, the LMF is a lower tech version used in the lower volume half ton vehicles cargo vans with AWD that still used the 4 speed automatic, and do not use Active Fuel Management. 2014 was the last year for the GM full size 1/2 ton cargo vans. 3/4 and 1 ton are still in production.
LMF applications:
- 2010-2014 Chevrolet Express 1/2 ton AWD
- 2010-2014 GMC Savana 1/2 ton AWD
LH6
The Vortec 5300 LH6 (VIN code "M") with Active Fuel Management replaced the LM4 for 2005, and was the first of the Generation IV small block V8 truck engines to go into production. The LH6 produced 300 hp (220 kW) to 315 hp (235 kW) and 330 lb·ft (447 N·m) to 338 lb·ft (458 N·m). It is the aluminum block counterpart to the LY5.
LH6 applications:
- 2005-2009 Chevrolet TrailBlazer including EXT (through 2006)
- 2005-2009 GMC Envoy Denali
- 2005-2006 GMC Envoy XL
- 2005 GMC Envoy XUV
- 2005-2007 Buick Rainier
- 2005-2009 Saab 9-7X
- 2005-2007 Isuzu Ascender
- 2007 Chevrolet Silverado 1500
- 2007-2009 GMC Sierra 1500
LY5
Introduced in 2007, the Vortec 5300 LY5 (VIN code "J") is the replacement for the LM7 Generation III engine. For SUV applications, it is rated at 320 hp (239 kW) and 340 lb·ft (461 N·m) of torque; for pickup truck applications, it is rated at 315-320 hp (235-239 kW) at 5200 rpm and 335-340 lb·ft (454-461 N·m) at 4000 rpm
LY5 applications:
- 2007-2014 Chevrolet Avalanche
- 2007-2013 Chevrolet Silverado 1500
- 2007-2014 Chevrolet Suburban 1/2 ton
- 2007-2014 Chevrolet Tahoe
- 2007-2013t GMC Sierra 1500
- 2007-2014 GMC Yukon
- 2007-2014 GMC Yukon XL 1/2 ton
LMG
The Vortec 5300 LMG (VIN code "0") is the flexible-fuel version of the LY5. Power and torque ratings for SUV and pickup truck applications are the same as each application's LY5 rating. Variable valve timing was added for the 2010 model year.
LMG applications:
- 2007-2013 Chevrolet Avalanche
- 2007-2013 Chevrolet Silverado 1500
- 2007-2014 Chevrolet Suburban 1/2 ton
- 2007-2014 Chevrolet Tahoe
- 2007-2013 GMC Sierra 1500
- 2007-2014 GMC Yukon
- 2007-2014 GMC Yukon XL 1/2 ton
LC9
The Vortec 5300 LC9 (VIN code "3") is the aluminum block Flex-Fuel version of the LH6, and is found in 4WD models. SUV applications are rated at 320 hp (239 kW) @ 5400 rpm and 335 lb·ft (454 N·m) @ 4000 rpm of torque. Pickup truck applications are rated at 315 hp (235 kW) @ 5300 rpm and 335 lb·ft (454 N·m) @ 4000 rpm of torque. Variable valve timing was added for the 2010 model year.
LC9 applications:
- 2007-2013 Chevrolet Avalanche
- 2007-2013 Chevrolet Silverado 1500
- 2007-2014 Chevrolet Suburban 1/2 ton
- 2007-2013 GMC Sierra 1500
- 2007-2014 GMC Yukon XL 1/2 ton
LH8
The Vortec 5300 LH8 is a variant of the 5.3 L Gen IV small block V8 modified to fit in the engine bay of the GMT 345 SUV and GMT 355 trucks. It produces 300 hp (220 kW) at 5200 rpm and 320 lb·ft (434 N·m) at 4000 rpm. It has a displacement of 5,328 cc (325.1 cu in).
LH8 applications:
- 2008-2010 Hummer H3 Alpha
- 2009-2012 Chevrolet Colorado/GMC
LS4
The LS4 is a 5,328 cc (5.328 L; 325.1 cu in) version of the Generation IV block. Though it has the same displacement as the Vortec 5300 LY5, it features an aluminum block instead of iron, and it uses the same cylinder head as the Generation III LS6 engine. The bellhousing bolt pattern differs from the rear-wheel drive blocks.
This engine is adapted for transverse front-wheel drive applications. According to GM, "The crankshaft is shortened 13 mm - 3 mm at the flywheel end and 10 mm at the accessory drive end - to reduce the length of the engine compared to the 6.0L. All accessories are driven by a single serpentine belt to save space. The water pump is mounted remotely with an elongated pump manifold that connects it to the coolant passages. Revised oil pan baffles, or windage trays, are incorporated into the LS4 to ensure that the oil sump stays loaded during high-g cornering." Active Fuel Management is also used. Output of this version is 303 hp (226 kW)/300 hp on LaCrosse Super and 323 lb·ft (438 N·m).
Applications:
- 2005-2008 Pontiac Grand Prix GXP
- 2006-2009 Chevrolet Impala SS
- 2006-2007 Chevrolet Monte Carlo SS
- 2008-2009 Buick LaCrosse Super
4.125 in bore blocks (2006-present)
Inspired by the LS1.R in size and performance goals, this family of blocks was designed for race oriented performance. The only engine with this bore size that was used in a production vehicle is the LS7 with the LSX being only for aftermarket use. One unique feature of this family is that the cylinders are siamesed, no water passages between neighboring cylinders. This was done to increase both bore size and block strength.
7.0 L
LS7
The LS7 is a 7,011 cc (7.011 L; 427.8 cu in) engine, based on the Gen IV architecture. The block is changed, with sleeved cylinders in an aluminum block and a larger 4.125in (104.775mm) bore and longer 4.00in (101.6mm) stroke than the LS2. The small-block's 4.4 in (110 mm) bore spacing is retained, requiring pressed-in cylinder liners. The crankshaft and main bearing caps are forged steel for durability, the connecting rods are forged titanium, and the pistons are hypereutectic. The two-valve arrangement is retained, though the titanium intake valves by Del West have grown to 2.20 in (56 mm) and sodium-filled exhaust valves are up to 1.61 in (41 mm).
Peak output is 505 hp (377 kW) at 6300 rpm and 470 lb·ft (640 N·m) at 4800 rpm with a 7100 rpm redline During GM's reliability testing of this engine in its prototype phase, the LS7 was remarked to have been repeatedly tested to be 8000 rpm capable, although power was not recorded at that rpm level, due to the constraints of the camshaft's hydraulic lifters and the intake manifold ability to flow required air at that engine speed.
The LS7 is hand-built by the General Motors Performance Build Center in Wixom, Michigan. Most of these engines are installed in the Z06, some are also sold to individuals by GM as a crate engine. While it has the same displacement the Hennessey Venom GT utilizes an iron block LSX, not an LS7.
After an extensive engineering process over several years, Holden Special Vehicles fitted the LS7 to a special edition model, the W427. The HSV-tuned engine produced 375 kW (503 hp) and 640 N·m (470 lb·ft). The W427 was unveiled at the Melbourne International Motor Show on 29 February 2008 and went on sale in August 2008. The first Australian car to be fitted with this engine, however, was the CSV GTS of 2007, which was claimed to have a power output of 400 kW (536 hp) and 600 N·m (440 lb·ft).
Applications:
- 2006-2013 Chevrolet Corvette Z06
- 2008 Spada Codatronca
- 2013 Corvette 427 Convertible
- 2007 CSV GTS
- 2008 HSV W427
- 2012 New Zealand V8SuperTourer
- 2014-2015 Chevrolet Camaro Z/28
- Vertical Hummingbird helicopter
- 2012-present Falcon F7
- 2014 Korres P4
4.06 in bore blocks (2007-present)
This family was designed as a replacement for the LS2 but enlarged to better accommodate variable valve timing and Active Fuel Management while still generating good performance. This family of engines has mainly seen duty in performance cars and high-end SUVs.
6.2 L
L92
The 2007 Cadillac Escalade has a 6.2 L Vortec 6200 (RPO L92) (?379 cu in) engine. It is an all-aluminum design which, while still a pushrod engine, boasts variable valve timing. The system adjusts both intake and exhaust timing between two settings. This engine produces 403 hp (301 kW) and 417 lb·ft (565 N·m) in the GMC Yukon Denali/XL Denali, GMC Sierra Denali, Hummer H2, and briefly in the Chevrolet Tahoe LTZ (midway through MY 2008 through MY 2009) and rated at 403 hp (301 kW) and 415 lb·ft (563 N·m). It was also available in the Chevrolet Silverado and GMC Sierra starting in MY 2009 (as the L9H) with power ratings of 403 hp (301 kW) and 417 lb·ft (565 N·m) .The L92 was modified with Flex Fuel capability for MY 2009 and became the L9H, and was further modified with Active Fuel Management for MY 2010 (and becoming the L94) in the Cadillac Escalade and GMC Yukon Denali's (Active Fuel Management hardware was present in 2007 engines, but the software was not present in the PCM).
Applications:
- 2007-2013 Cadillac Escalade (L9H for MY 2009, L94 for MY 2010-2013)
- 2008-2009 Chevrolet Tahoe
- 2007-2013 GMC Yukon Denali/Denali XL
- 2007-2013 GMC Sierra Denali
- 2008-2009 Hummer H2
- 2009-2013 Chevrolet Silverado 1500 (as RPO code L9H)
- 2009-2013 GMC Sierra 1500 (as RPO code L9H)
LS3
The LS3 was introduced as the Corvette's new base engine for the 2008 model year. It produces 430 bhp (321 kW; 436 PS) at 5900 rpm and 424 lb·ft (575 N·m) at 4600 rpm without the optional Corvette exhaust and is SAE certified. The block is an updated version of the LS2 casting featuring a larger bore of 4.06 in (103 mm) creating a displacement of 6,162 cc (6.162 L; 376.0 cu in). It also features higher flowing cylinder heads sourced from the L92, a more aggressive camshaft with 0.551-inch (14.0 mm) lift, a 10.7:1 compression ratio, a revised valvetrain with 6 mm (0.24 in) offset intake rocker arms, a high-flow intake manifold and 47 lb/hr fuel injectors from the LS7 engine.
The L76/L92/LS3 cylinder heads use 2.165 in (55.0 mm) intake valves, and 1.59 in (40 mm) exhaust valves. Improved manufacturing efficiency makes these heads cheaper than the outgoing LS6 heads, and severely undercuts aftermarket heads. The large valves, however, limit maximum rpm - 6000 in the L76 (with AFM), and 6600 in the LS3 (with hollow stem valves).
In addition to the above, a dual-mode exhaust package with a bypass on acceleration was available on C6 Corvettes. The dual-mode exhaust uses vacuum-actuated outlet valves, which control engine noise during low-load operation, but open for maximum performance during high-load operation. The system is similar to the C6 Z06, but uses a 2.5 in (64 mm) diameter exhaust compared to the Z06's 3 in (76 mm). Power is boosted to 436 hp (325 kW) and 428 lb·ft (580 N·m) with this option. A similar system was optional on later model 5th generation Chevrolet Camaros and standard on the 2016-2017 Chevrolet SS, but no horsepower or torque increases were advertised on those vehicles.
From April 2008, Australian performance car manufacturer, HSV, adopted the LS3 as its standard V8 throughout the range, replacing the LS2. The LS3 received modifications for its application to HSV E Series models, producing 425 bhp (317 kW). The LS3 engine in the E Series II GTS (released September 2009) was upgraded to produce 436 bhp (325 kW). All HSV MY12.5 excluding the base Maloo and Clubsport variants have been upgraded to produce 436 bhp (325 kW).
From September 2015 Holden introduced the LS3 in all V8 models of the VF II Commodore and WN II Caprice-V, replacing the 6.0L L77.
Applications:
- 2008-2013 Chevrolet Corvette
- 2010-2015 Chevrolet Camaro SS (manual only)
- 2008-2017 Holden Commodore family:
- 2009 Pontiac G8 GXP
- 2009-2013 Vauxhall VXR8
- 2008-2013 HSV GTS
- 2008-2015 HSV Maloo R8 and Senator Signature
- 2008-2016 HSV Clubsport R8
- 2014-2017 Chevrolet SS
- 2015-2017 Holden Commodore
- 2008-2016 Holden Caprice family:
- 2008-2016 HSV Grange
- 2015-2017 Holden Caprice-V
- Drakan Spyder
L99
The L99 is derived from the LS3 with reduced output but adds Active Fuel Management (formerly called Displacement on Demand) and variable valve timing, which allows it to run on only four cylinders during light load conditions.
Applications:
- 2010-2015 Chevrolet Camaro SS (Automatic Transmission)
LS9
The Gen IV LS9 is a supercharged 6,162 cc (6.162 L; 376.0 cu in) engine, based on the LS3; the LS7 block was not used due to the higher cylinder pressures created by the supercharger requiring the thicker cylinder walls of the LS3. Cylinder dimensions are now 4.06 in (103 mm) bore and 3.62 in (92 mm) stroke. It is equipped with an Eaton four-lobe Roots type supercharger and has a compression ratio of 9.1:1. Power output is rated 638 bhp (476 kW) at 6500 rpm and 604 lb·ft (819 N·m) at 3800 rpm. Note: GM previously used the LS9 RPO code on 1969 and later Chevrolet trucks (both 2WD and 4WD) including Blazers, Jimmys, Suburbans, as well as car carriers. The original LS9 was a 350 cu in V8, developing 160 hp and 245 Ft/lbs of torque.
Applications:
- 2009-2013 Chevrolet Corvette ZR1
- 2017 HSV GTSR W1
- Equus Bass 770
LSA
The supercharged 6.2L LSA is similar to the LS9 and debuted in the 2009 CTS-V. The LSA has been SAE certified at 556 bhp (415 kW) at 6100 rpm and 551 lb·ft (747 N·m) at 3800 rpm. GM labeled it "the most powerful ever offered in Cadillac's nearly 106-year history". The LSA features a smaller 1.9L capacity supercharger rather than the 2.3 L variant of the LS9. Other differences include a slightly lower 9.0:1 compression ratio, single unit heat exchanger and cast pistons.
A 580 bhp (430 kW) and 556 lb·ft (754 N·m) version of the LSA engine is used in the 2012 Camaro ZL1. On 15 May 2013, Holden Special Vehicles announced that this version of the LSA engine will also be used in the GEN-F GTS.
Applications:
- 2009-2013 Cadillac CTS-V
- 2012-2015 Chevrolet Camaro ZL1
- 2013-2017 HSV GTS
- 2014 HSV GTS Maloo
- 2015-2017 HSV Clubsport R8 LSA, Maloo R8 LSA and Senator Signature
- 2017 HSV GTSR and GTSR Maloo
Generation V (2013-present)
In 2007, wardsauto.com reported that the LS3 (used by 2008 Chevrolet Corvette) and Vortec 6000 LFA (used by 2008 Chevrolet Tahoe Hybrid) engines would be the final two designs in the Generation IV small-block engine family, and the future designs would be part of the Generation V engine family. An experimental engine was built based on L92 engine from Cadillac Escalade, GMC Yukon Denali and Hummer H2, and reported to generate 450 bhp (340 kW) on gasoline via direct fuel injection, increased compression ratio to 11.5:1, and a modified engine controller. The first Gen V LT engine was the LT1, announced in 2012 as the initial powerplant for the redesigned C7 Corvette, succeeding the LS engine family. The new logo formally adopts the Small Block name for the engines.
The fifth generation of the iconic GM small block engine family features the same cam-in-block architecture and 4.400-inch bore centers (the distance between the centers of each cylinder) that were born with the original small block in 1955. Structurally, the Gen-V small-block is similar to the Gen III/IV engines, including a deep-skirt cylinder block. Refinements and new or revised components are used throughout, including a revised cooling system and all-new cylinder heads. The engine is also designed to accommodate an engine-driven high-pressure fuel pump for the direct-injection system, Active Fuel Management, and continuously variable valve timing support an advanced combustion system. All Gen V engine are aluminum blocks with aluminum cylinder heads.
It includes features such as direct injection, piston cooling jets, active fuel management, variable displacement oil pump, continuously variable valve timing and aluminum cylinder heads and block. However, it does retain its ancestors' 2-valve pushrod valvetrain.
4.06 in bore blocks (2014 - current)
This family of blocks were the first of the generation V small block with the LT1 being the progenitor of this family and generation. This family of blocks has seen a wide range of applications from performance vehicles to truck usage.
6.2 L
LT1
The LT1 engine debuted in the 2014 Chevrolet Corvette Stingray and is the first Generation V small block engine. Like its LS3 predecessor, it gets its displacement from 103.25 mm (4.060 in) bore and 92 mm (3.62 in) stroke with a compression ratio of 11.5 to 1.
Applications:
L86
Dubbed EcoTec3 6.2L is a Generation V small block V8 truck engine. The L86 is an LT1 engine modified for truck use with a compression ratio of 11.5 to 1.
Applications:
LT4
The LT4 engine builds on the design strengths of the previous LS9 supercharged engine used in the sixth-generation Corvette ZR1 and leverages the technologies introduced on the seventh-generation Corvette Stingray, including direct injection, cylinder deactivation and continuously variable valve timing, to take Corvette performance to an all-new level. The LT4 engine is based on the same Gen 5 small block foundation as the Corvette Stingray's LT1 6.2L naturally aspirated engine, incorporating several unique features designed to support its higher output and the greater cylinder pressures created by forced induction, including: Rotocast A356T6 aluminum cylinder heads that are stronger and handle heat better than conventional aluminum heads, lightweight titanium intake valves, forged powder metal steel connecting rods which are highly machined to an optimized geometry for increased strength while eliminating unnecessary reciprocating mass, 10.0:1 compression ratio, high for a forced-induction engine, enhances performance and efficiency and is enabled by direct injection, forged aluminum pistons with unique, stronger structure to ensure strength under high cylinder pressures, stainless steel exhaust manifolds for structure at higher temperatures, aluminum balancer for reduced mass, and standard dry-sump oiling system with a dual-pressure-control oil pump. The engine uses a 1.7L Eaton TVS supercharger. Although smaller than the previous 2.3l supercharger used on the sixth-gen ZR1, it spins 5000 RPM faster thus generating boost quicker while making only slightly less total boost than the LS9 engine.
Applications:
3.78 in bore blocks (2014 - current)
Unlike the previous Generation III/IV 3.78 in bore block families, there is no 4.8 L displacement variant.
5.3 L
L83
Dubbed EcoTec3 5.3 L is a Generation V small block V8 truck engine.(VIN Code "C") Like its Vortec 5300 Generation IV predecessor, it gets its displacement from 96.01 mm (3.78 in) bore and 92 mm ( 3.62 in) stroke with a compression ratio of 11.0 to 1.
Applications:
L8B
The L8B is an eAssist mild hybrid version of the L83 featuring a .45-KWH lithium ion battery pack. This setup can improve fuel efficiency by about 13%. This adds about 100 lb (45 kg) to the total weight of the truck but provides an additional 13 hp (10 kW) and 44 lb·ft (60 N·m).
Applications:
3.921 in bore blocks (2014 - current)
These V6 engines are based on the V8 version of the Gen-V family, but with two fewer cylinders - a design lineage that dates back to the previous 4.3L V6, which was itself a Gen-I small block with a pair of cylinders removed. Of special note, there were no V6 engines based on Generation II/III/IV small blocks.
4.3 L
LV3
Dubbed EcoTec3 4.3 L is a Generation V small block V6 truck engine. It gets its displacement from 99.6 mm (3.921 in) bore and 92 mm ( 3.62 in) stroke with a compression ratio of 11.0 to 1. Firing order is 1-6-5-4-3-2. This engine replaces the unrelated 4.3 L V6 that have a lineage that dates back to 1978.
Applications:
Engine table
Note 1: depending upon vehicle application; horsepower, torque, and fuel requirements will vary. vin code indicating engine RPO may also not be consistent between vehicle types (cars or trucks) or years. with few exceptions, RPM redline is generally 6000 or higher
Note 2: block features are generally dependent upon the Generation but not always built-in. typical features are AFM (Advanced Fuel Management), VVT (Variable Valve Train), Front Wheel Drive (FWD) and other improvements. features marked with an * indicate that only certain model years have that feature
Problems
In the early production run of the LS-series engine, some engines encountered 'piston slap' during the first couple minutes after a cold engine start - this sound is caused by the pistons rocking slightly in the cylinder until they reach operating temperature/size. 'Piston slap' sometimes sounds more like a knock or the sound of a diesel engine running. It is typically only present when the engine is cold and disappears as the engine reaches operating temperature. The noise of 'piston slap' often is louder when listening for it below the oil pan.
Another common problem with the 2001-2006 5.3L engines was cracking cylinder heads. This is commonly called the 'Castech Head' failure on the internet. GM issued a TSB on this failure to help service techs identify the problem. The head casting (which can be viewed from the passenger side of the vehicle just in front of the valve cover) was 706. Some heads with this casting number would fail (but not all of them) as GM had different suppliers for the same head. The failure was due to undetected porosity around the oil drains in the head.
Build-your-own program
In 2011, Chevrolet Performance began to offer the build your own engine program for LS7 (part number 19259944) or LS9 (part number 19259945) crate engines. It also provides customers the experience of visiting GM's unique Performance Build Center in Wixom, Mich., where they will join a specially trained engine builder to assist in the start-to-finish assembly of the engine they purchased - from installing the crankshaft in the cylinder block to topping off the engine with its intake system. In the case of the LS9, it also means installing the supercharger assembly. Upon completion, a personalized nameplate is added to the engine.
The build-your-own engine program associated with the V8 engines, available for buyers of Chevrolet Corvette, Cadillac XLR and certain top-spec Chevrolet Camaro models, were temporarily halted after the closure of GM Performance Build Center in Wixom, Michigan. The program's venue was reported to be relocated to the Corvette assembly plant in Bowling Green, Kentucky.
Aftermarket
LS7.R
The LS7.R engine is a variation of the LS7 used in the highly successful C6.R American Le Mans Series racecar. It was crowned as Global Motorsport Engine of the Year by a jury of 50 race engine engineers on the Professional Motorsport World Expo 2006 in Cologne, Germany.
LSX
LSx is also used to denote any LS engine.
At the 2006 SEMA show, GM Performance Parts introduced the LSX engine, an all-new cast-iron racing block based on the LS7 engine. It was designed with help from drag racing legend Warren Johnson. It offers displacements ranging from 364 cu in (5,965 cc) to 511 cu in (8,374 cc) (4.25 in (108 mm) Bore x 4.5 in (110 mm) Stroke) and is capable of withstanding 2,500 bhp (1,900 kW). This block incorporates two extra rows of head-bolt holes per bank for increased clamping capacity. The six bolt steel main caps are the same ones used on the LS7 engine. The engine debuted at the auto show in a customized 1969 Camaro owned by Reggie Jackson. The LSX will be available starting the second quarter of 2007, set to be available in authorized dealerships and retailers on March 31, 2007.
Chevrolet Performance LSX Bowtie block includes LSX specific six-bolts-per-cylinder head bolt pattern, billet-steel six-bolt dowel-located main bearing caps, extra-thick deck for maximum clamping force, extra-thick cylinder walls allow increased bore capacity (maximum 4.200-inch bore still allows 0.200-inch minimum wall thickness), true priority main oiling system, main web bay-to-bay breathing holes reduce crank windage,orange powder coat finish, machined bore at 3.880 is ready for final boring/honing.
LSX376
Chevrolet Performance LSX376 crate engines are updated versions of LSX crate engine family designed to support up to 1,000 horsepower. All models use Chevrolet Performance LSX Bowtie block.
LSX376-B15 (part number 19299306) includes forged steel crankshaft, forged H-beam rods and forged aluminum pistons (9.0:1 compression), high-flow rectangular-port six-bolt LSX-LS3 heads for supercharged and turbocharged combinations producing up to 15 pounds of boost and up to about 1,000 horsepower.
LSX376-B8 (part number 19171049) is a more economical version that is capable of approximately 8 pounds of boost, for engine producing approximately 600 horsepower. It is designed for production-style supercharger and turbo systems used without enhancements or modifications.
Source of the article : Wikipedia
EmoticonEmoticon
